Ranger 1000 XP (2019-2020) HD Primary and Secondary Clutches

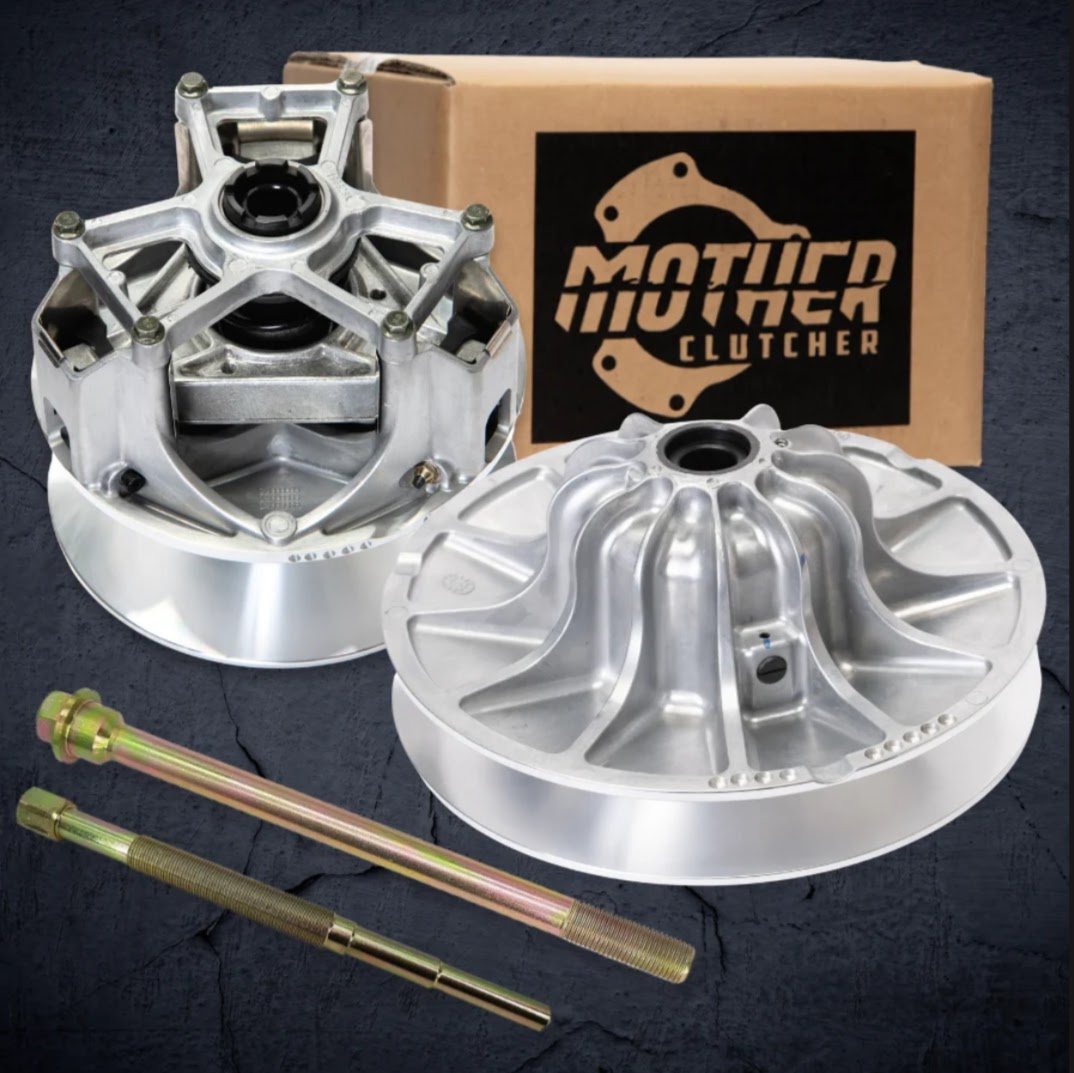

Mother Clutcher Heavy-Duty Complete Primary and Secondary Clutch Set
Upgrade for all 2019-2020 Polaris Ranger 1000 XP Crew Cab models and 2018-2020 Ranger 1000 XP Single Cab models (all packages, including Northstar). Both clutches are pre-balanced, pre-tuned, and bolt-on ready with the correct spring and weights in the primary and the helix and spring in the secondary. Compatible with standard belts, this set brings reliability and performance enhancements, backed by Harvey's ATV Parts with a no-exceptions 1-year warranty.
Fitment:
2019-2020 Polaris Ranger 1000 XP Crew Cab (all packages, including Northstar)
2018-2020 Polaris Ranger 1000 XP Single Cab (all packages, including Northstar)
Note: Does NOT fit 2018 Crew Cab, any non-XP models, 2017, or 2021+ models.
Replaces OEM part numbers: 132450, 132451, 1323654, 1323397, 1323785, 1323698.
Upgraded Primary Clutch Features:
P90XT Clutch: Derived from the RZR Turbo, this clutch eliminates the OEM’s failure-prone EBS design and casting issues, replacing them with a robust design that can withstand double the Ranger 1000’s horsepower.
Smoother Engagement: This clutch enhances take-off smoothness, removing the OEM’s problematic EBS setup and using a reliable two-way bearing.
Higher RPM Power Band: Slightly raised RPM at 3/4 to full throttle for better performance on trails or roads, but still practical for slow speeds and work.
Design Note: This type of primary clutch produces a ticking sound at idle (below 2200 RPM) due to the free-moving spider in the clutch basket, a characteristic shared with the OEM RZR Turbo.
Installation: Requires only the P90X puller tool to remove the stock clutch. Includes a new mounting bolt for easy setup.
Updated Secondary Clutch Features:
Reinforced Housing: Strengthened outer sheave on the main housing provides better balance and durability.
Reduced EBS Slope: Provides smoother, usable engine braking in low gear without the harsh braking that causes belt wear.
Enhanced Belt Grip: Equipped with a 30lb stiffer spring and steeper helix slope for improved belt grip, especially helpful if you upgrade to larger tires.
Guarantee: Covered by a comprehensive 1-year warranty from Harvey’s ATV Parts.
Shipping: Ships to all U.S. states and territories, including PR and Guam, via UPS Ground with tracking. Orders are processed within 2 business days after payment. Expedited shipping is available at checkout.
